Steel Roller Conveyor > M Series
R-7642N
Product Description
Product Description
Diameter Φ76, steel thickness at 4.2 with shaft diameter Φ20 for heavy-duty use at an affordable price.
Purpose
For heavy-duty conveying.
Product Features
1. Roller diameter φ76.3, thickness t4.2, minimum roller pitch P100.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Diameter Φ76, steel thickness at 4.2 with shaft diameter Φ20 for heavy-duty use at an affordable price.
Purpose
For heavy-duty conveying.
Product Features
1. Roller diameter φ76.3, thickness t4.2, minimum roller pitch P100.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

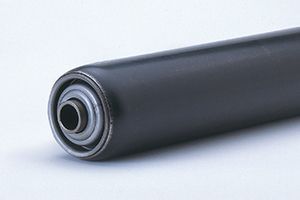

Product Images

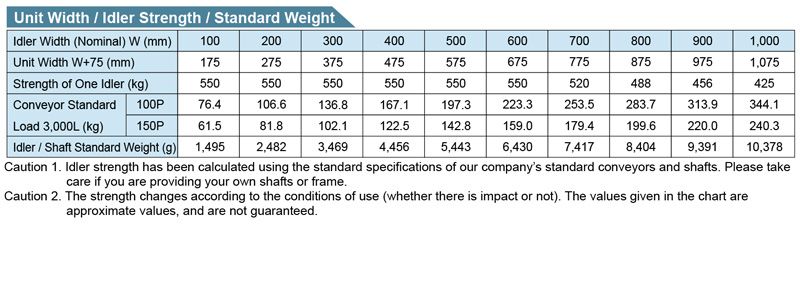

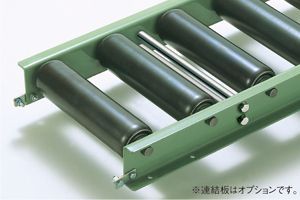

Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
76Roller outer diameter (Φ) 76: 76.3
|
- |
42Roller Pipe Thickness (t) 42: t4.2
|
- |
NBearing Type N:
Machined Bearing |
- |
#Frame Length
|
Product Specifications

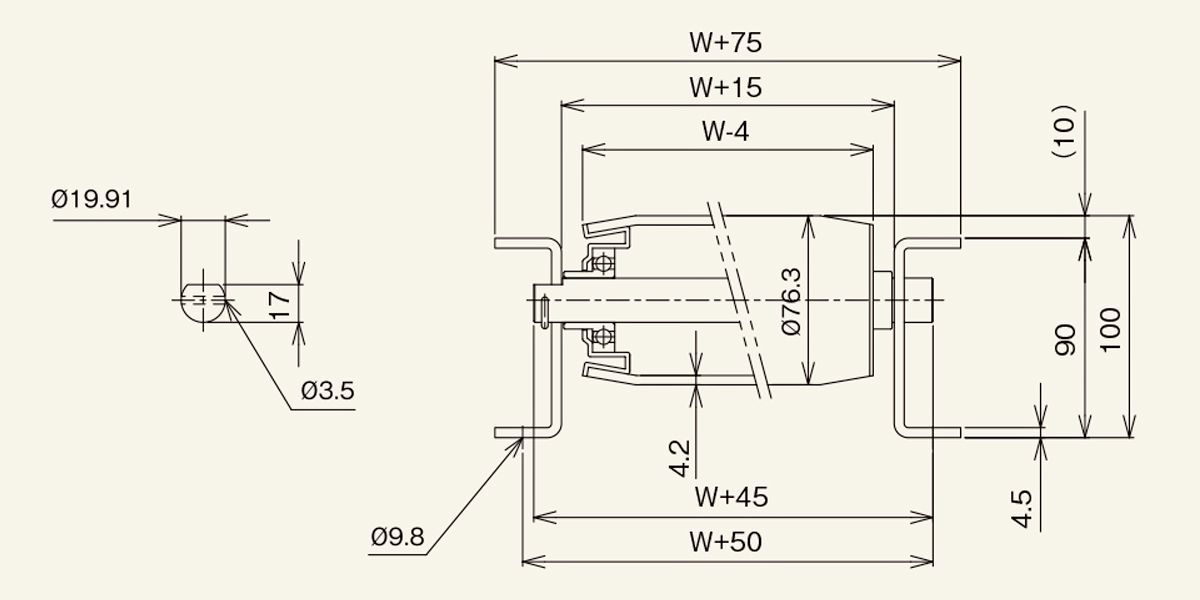

■Technical Drawings
■Technical Details
| Roller Type: | R-7642N |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 76.3 |
| Roller Dimensions: Thickness (t) | 4.2 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 20.2 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 100 |
| Maximum Roller Width Available (W): | 1000 |
| Roller Width Free Size: | Available |
| Roller Material: | SGP65A |
| Roller Surface Treatment: | None / Original Condition |
| Bearing Specifications: | Machined Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 4.5 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 100・150・200・300 |
| Machine Height (Up to Roller Surface) H: | 100.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 20 (19.9) |
| Shaft Length (mm): | W+45 |
| Shape: | Cyclindrical Rod |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | SS400 |
| Unit (mm): | Not Available |
| Unit: mm | ー |
