Steel Roller Conveyor > M Series
R-4814P
Product Description
Product Description
Diameter Φ48 for medium-weight transport at an affordable price.
Purpose
For medium to light-duty conveying.
Product Features
1. Roller diameter φ38.1, minimum roller pitch P50.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Press bearing, affordable type.
4. Standard type: [ 60 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Diameter Φ48 for medium-weight transport at an affordable price.
Purpose
For medium to light-duty conveying.
Product Features
1. Roller diameter φ38.1, minimum roller pitch P50.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Press bearing, affordable type.
4. Standard type: [ 60 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Product Images

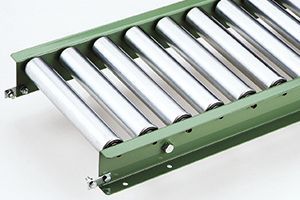

R-4814P Gravitiy Roller Conveyor M Series

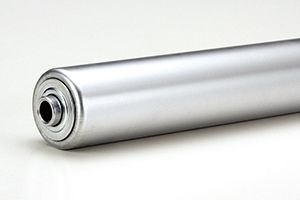

Compatible Roller for R-4814P Gravity Roller Conveyor, M Series
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
48Roller outer diameter (Φ) 48: 48.6
|
- |
14Roller Pipe Thickness (t) 14: t1.6
|
- |
PBearing Type P:
Press Bearing |
- |
#Frame Length
|
Product Specifications

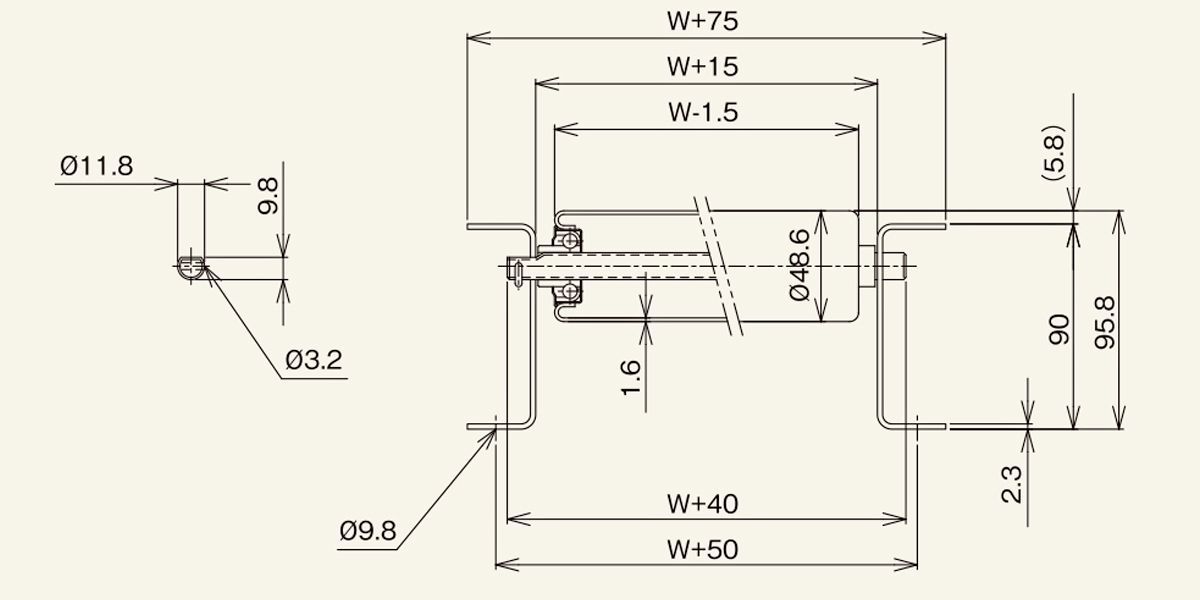

■Technical Drawings

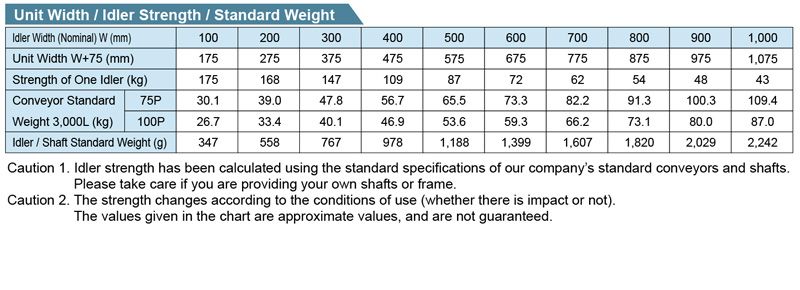

■Technical Details
| Roller Type: | R-4814P |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 48.6 |
| Roller Dimensions: Thickness (t) | 1.6 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 12.2 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 100 |
| Maximum Roller Width Available (W): | 1000 |
| Roller Width Free Size: | 50mm interval |
| Roller Material: | STKM |
| Roller Surface Treatment: | Hot-Dip Galvanizing |
| Bearing Specifications: | Press Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 2.3 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 50・75・100・150 |
| Machine Height (Up to Roller Surface) H: | 95.8 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 12 (11.8) x 1.0 |
| Shaft Length (mm): | W+40 |
| Shape: | Pipe |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | STKM11A |
| Unit (mm): | Not Available |
| Unit: mm | ー |
■Others
Data Download
R-4814P
