Steel Roller Conveyor > M Series
R-5723
Product Description
Product Description
Φ57 is highly versatile to handle heavy loads.
Purpose
For heavy-duty conveying.
Product Features
1. Roller diameter φ57.2, thickness t2.3, versatile for heavy-duty use. Minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Φ57 is highly versatile to handle heavy loads.
Purpose
For heavy-duty conveying.
Product Features
1. Roller diameter φ57.2, thickness t2.3, versatile for heavy-duty use. Minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

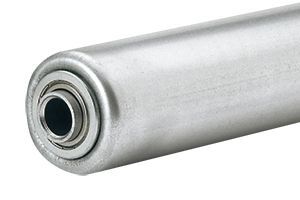

Product Images
Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
57Roller outer diameter (Φ) 57: 57.2
|
- |
23Roller Pipe Thickness (t) 23: t2.3
|
- |
ーBearing Type:
No Mark: Machined Bearing |
- |
#Frame Length
|
Product Specifications
■Technical Drawings

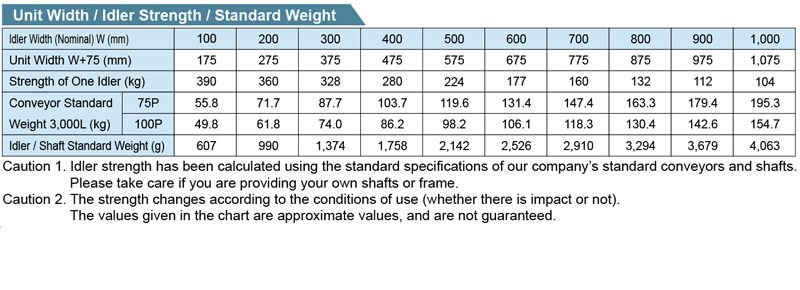

■Technical Details
| Roller Type: | R-5723 |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 57.2 |
| Roller Dimensions: Thickness (t) | 2.3 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 17.2 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 100 |
| Maximum Roller Width Available (W): | 1000 |
| Roller Width Free Size: | 50mm interval |
| Roller Material: | STKM |
| Roller Surface Treatment: | Hot-Dip Galvanizing |
| Bearing Specifications: | Machined Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 4.5 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 75・100・150・200 |
| Machine Height (Up to Roller Surface) H: | 100.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 17 (16.85) x 2.0 |
| Shaft Length (mm): | W+45 |
| Shape: | Pipe |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | STKM11A |
| Unit (mm): | Not Available |
| Unit: mm | ー |
■Others
Data Download
R-5723
Contact Us Quotation Request ▶
