R-5721D
Product Description
Product Description
Similar to R-5721: Free-size roller width.
Purpose
For medium to light-duty conveying.
Product Features
1. Roller diameter φ57.2, thickness t2.1 for increased impact resistance, minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Similar to R-5721: Free-size roller width.
Purpose
For medium to light-duty conveying.
Product Features
1. Roller diameter φ57.2, thickness t2.1 for increased impact resistance, minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. Machined bearing.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

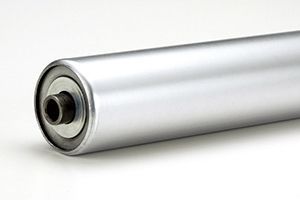

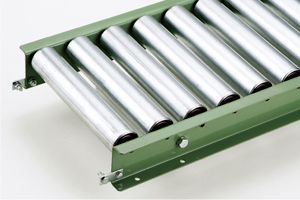

Product Images
Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
57Roller outer diameter (Φ) 57: 57.2
|
- |
21Roller Pipe Thickness (t) 21: t2.1
|
- |
DBearing Type D:
Machined Bearing |
- |
#Frame Length
|
Product Specifications

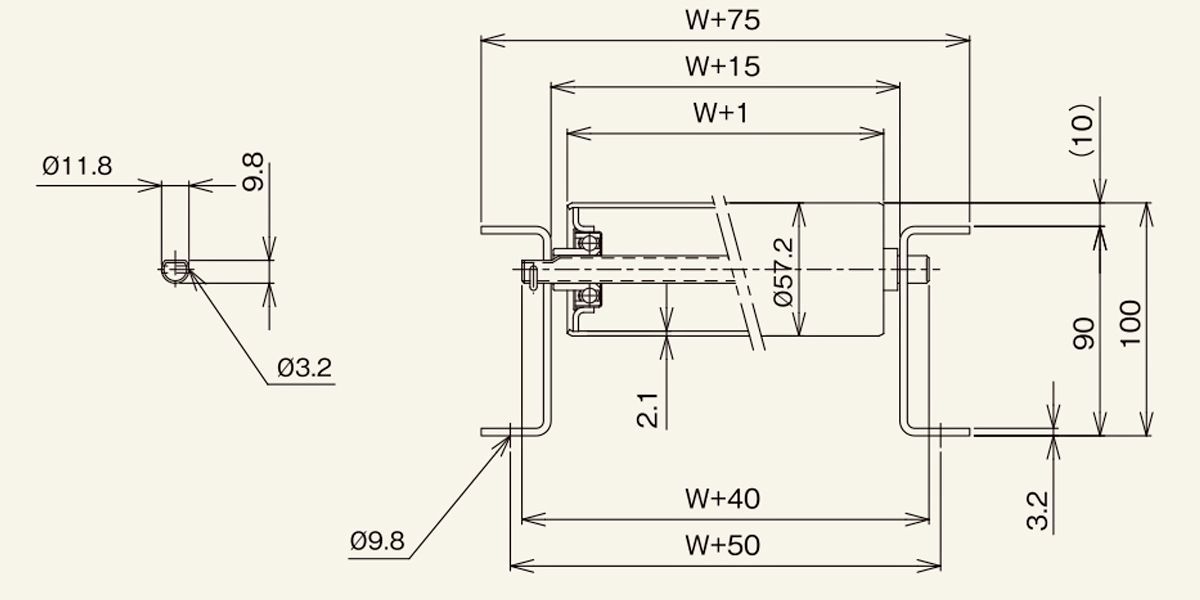

■Technical Drawings

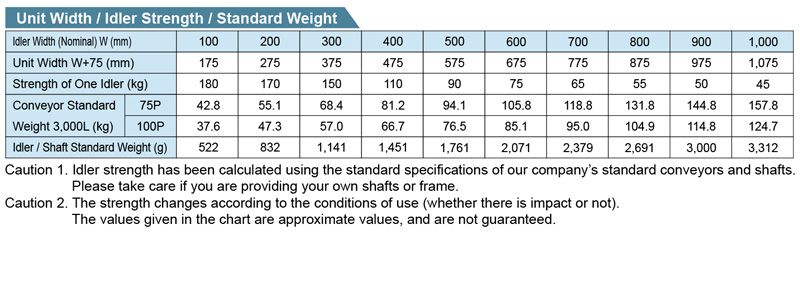

■Technical Details
| Roller Type: | R-5721D |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 57.2 |
| Roller Dimensions: Thickness (t) | 2.1 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 12.2 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 50 |
| Maximum Roller Width Available (W): | 1500 |
| Roller Width Free Size: | Available |
| Roller Material: | STKM |
| Roller Surface Treatment: | Hot-Dip Galvanizing |
| Bearing Specifications: | Machined Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 3.2 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 75・100・150・200 |
| Machine Height (Up to Roller Surface) H: | 100.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 12 (11.8) x 1.0 |
| Shaft Length (mm): | W+40 |
| Shape: | Pipe |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | STKM10A |
| Unit (mm): | Not Available |
| Unit: mm | ー |
