Steel Roller Conveyor > M Series
R-5714P
Product Description
Product Description
Diameter Φ57 - Our most versatile and cost-effective conveyor for medium-duty transport.
Our popular and best-selling product.
Purpose
For medium-duty conveying.
Product Features
1. Roller diameter φ57.2, minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. The most versatile type for medium-duty conveying.
4. Press bearing, affordable type, popular product with φ57.
5. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Diameter Φ57 - Our most versatile and cost-effective conveyor for medium-duty transport.
Our popular and best-selling product.
Purpose
For medium-duty conveying.
Product Features
1. Roller diameter φ57.2, minimum roller pitch P75.
2. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
3. The most versatile type for medium-duty conveying.
4. Press bearing, affordable type, popular product with φ57.
5. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

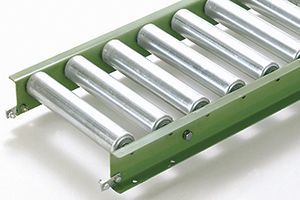

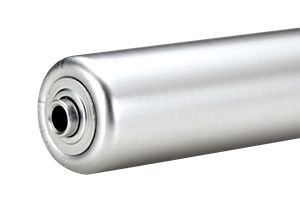

Product Images
Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
57Roller outer diameter (Φ) 57: 57.2
|
- |
14Roller Pipe Thickness (t) 14: t1.4
|
- |
PBearing Type P:
Press Bearing |
- |
#Frame Length
|
Product Specifications

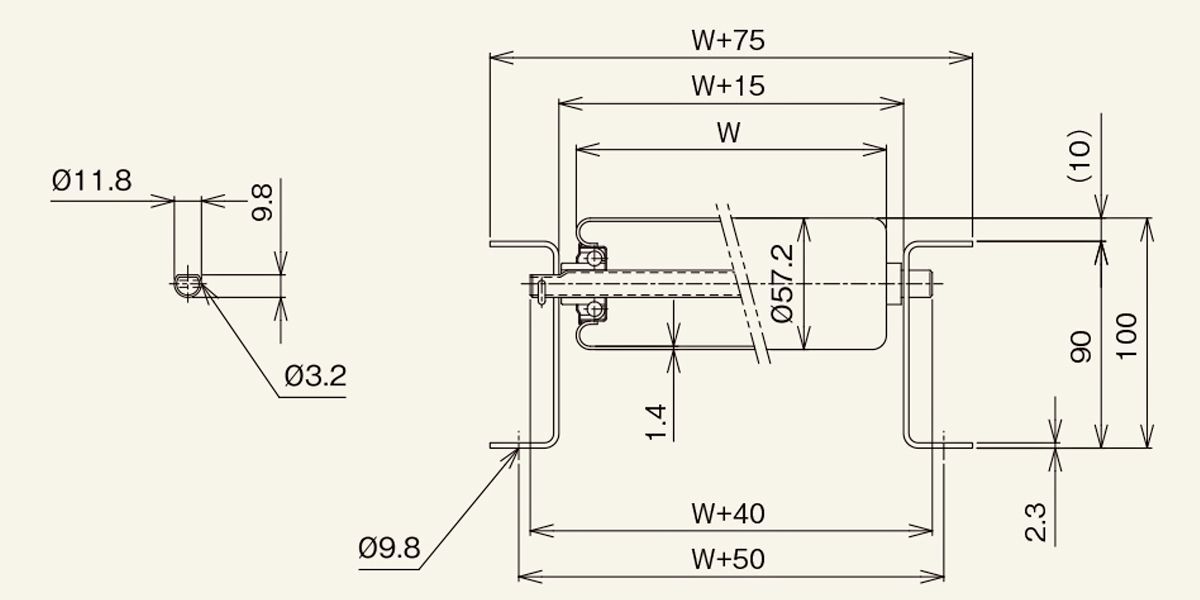

■Technical Drawings

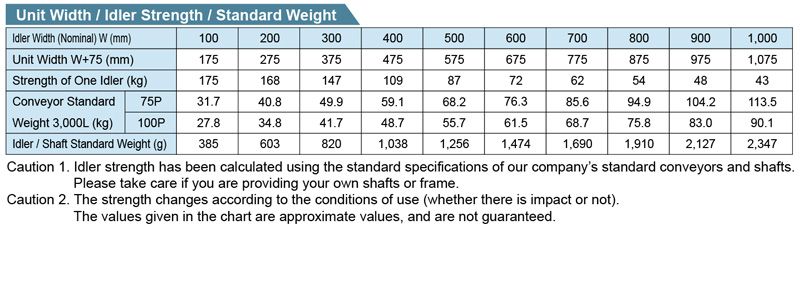

■Technical Details
| Roller Type: | R-5714P |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 57.2 |
| Roller Dimensions: Thickness (t) | 1.4 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 12.2 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 100 |
| Maximum Roller Width Available (W): | 1000 |
| Roller Width Free Size: | 50mm interval |
| Roller Material: | STKM11A-S |
| Roller Surface Treatment: | Molten Zinc Plating |
| Bearing Specifications: | Press Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 2.3 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 75・100・150・200 |
| Machine Height (Up to Roller Surface) H: | 100.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 12 (11.8) x 1.0 |
| Shaft Length (mm): | W+40 |
| Shape: | Pipe |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | STKM11A |
| Unit (mm): | Not Available |
| Unit: mm | ー |
