Steel Roller Conveyor > M Series
R-2812P
Product Description
Product Description
Ideal for lightweight and small item conveyance at an affordable price.
Our popular and best-selling product.
Purpose
For medium to light-duty conveying.
Ideal for small item transport.
Product Features
1. Roller diameter φ28.6, minimum roller pitch P30.
2. Nominal roller width is standard in 50mm increments from 100W to 500W. Custom sizes are also available.
3. Press bearing, affordable type, popular product with φ28.
4. Standard type: [ 60 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: Axle securing for assembled products with a roller pitch of P50 or less will be locked with R-shaped pins.
Note 3: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Ideal for lightweight and small item conveyance at an affordable price.
Our popular and best-selling product.
Purpose
For medium to light-duty conveying.
Ideal for small item transport.
Product Features
1. Roller diameter φ28.6, minimum roller pitch P30.
2. Nominal roller width is standard in 50mm increments from 100W to 500W. Custom sizes are also available.
3. Press bearing, affordable type, popular product with φ28.
4. Standard type: [ 60 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: Axle securing for assembled products with a roller pitch of P50 or less will be locked with R-shaped pins.
Note 3: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

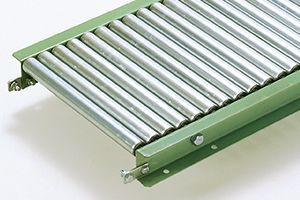

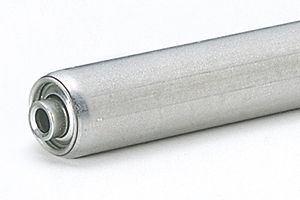

Product Images
Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
28Roller outer diameter (Φ) 28: 28.6
|
- |
12Roller Pipe Thickness (t) 12: t1.2
|
- |
PBearing Type P:
Press Bearing |
- |
#Frame Length
|
Product Specifications

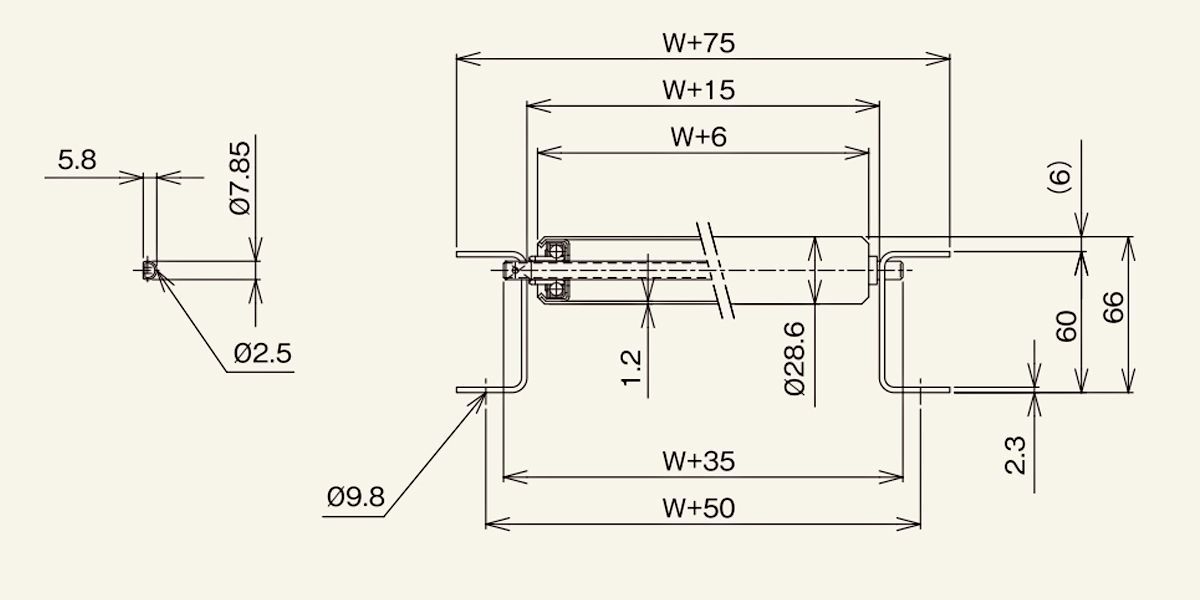

■Technical Drawings

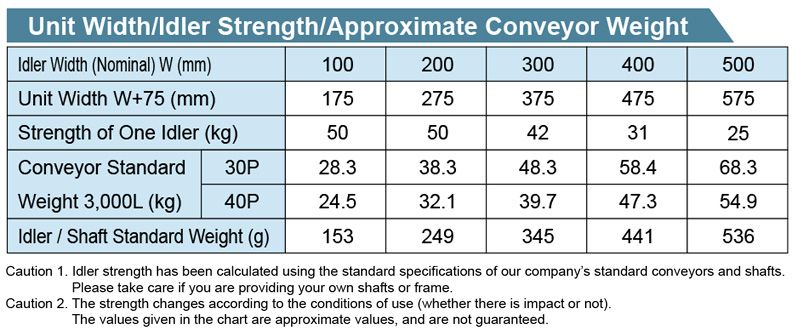

■Technical Details
| Roller Type: | R-2812P |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 28.6 |
| Roller Dimensions: Thickness (t) | 1.2 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 8.2 |
| Standard Roller Width (Nominal) W: | 100~500 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 40 |
| Maximum Roller Width Available (W): | 600 |
| Roller Width Free Size: | Available |
| Roller Material: | STKM12A |
| Roller Surface Treatment: | Hot-Dip Galvanizing |
| Bearing Specifications: | Press Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 60 x 30 x 2.3 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 30・40・50・75 |
| Machine Height (Up to Roller Surface) H: | 66.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 8 (7.85) × 0.8 |
| Shaft Length (mm): | W+35 |
| Shape: | Pipe |
| Machining: | Round/ Half-Moon Shape /Vertical Pin Hole |
| Material: | STKM11A |
| Unit (mm): | Not Available |
| Unit: mm | ー |
■Others
Data Download
R-2812P
